- Application
- Features
- Conditions of Use

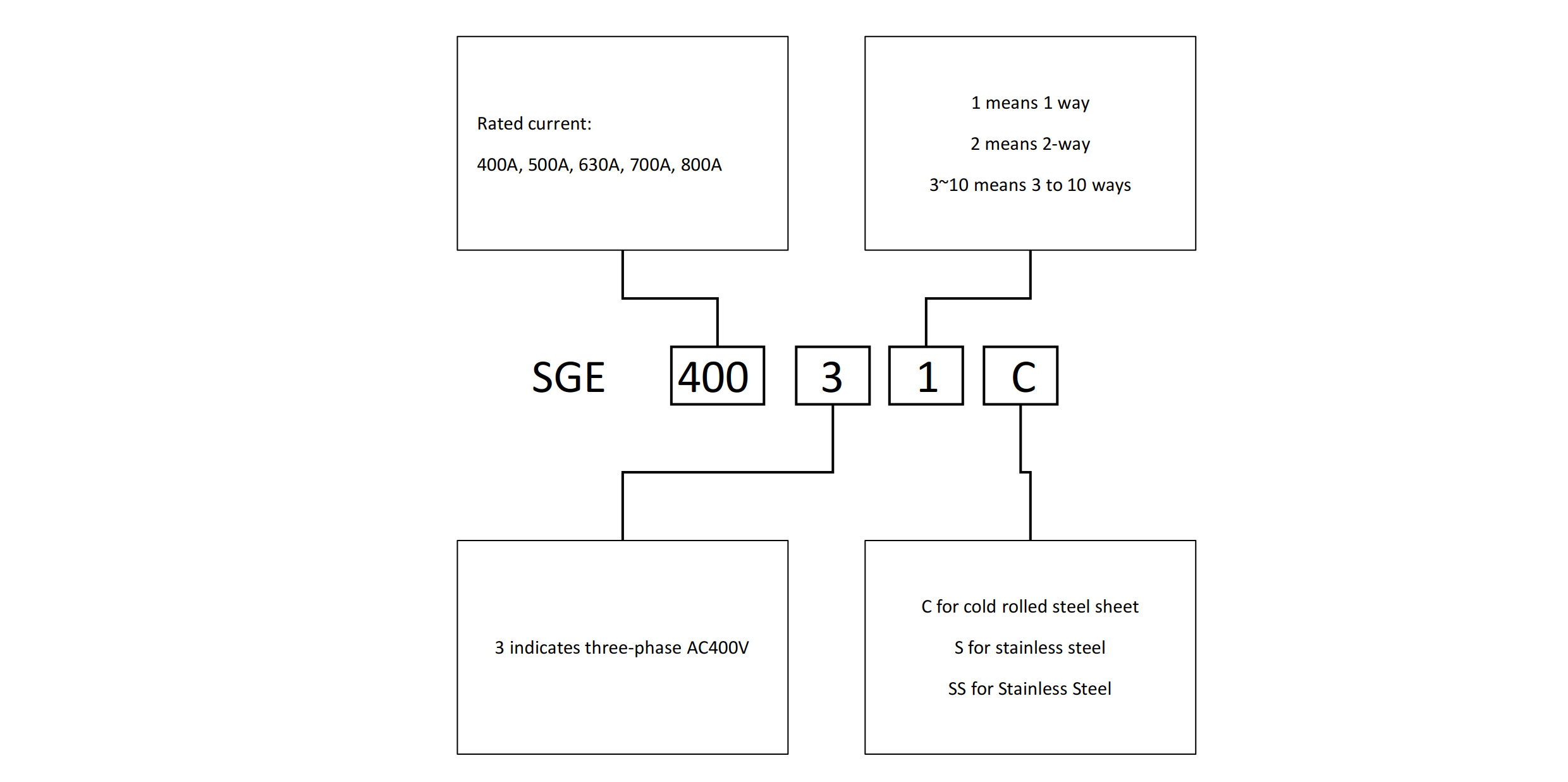

- Quick Selection Table

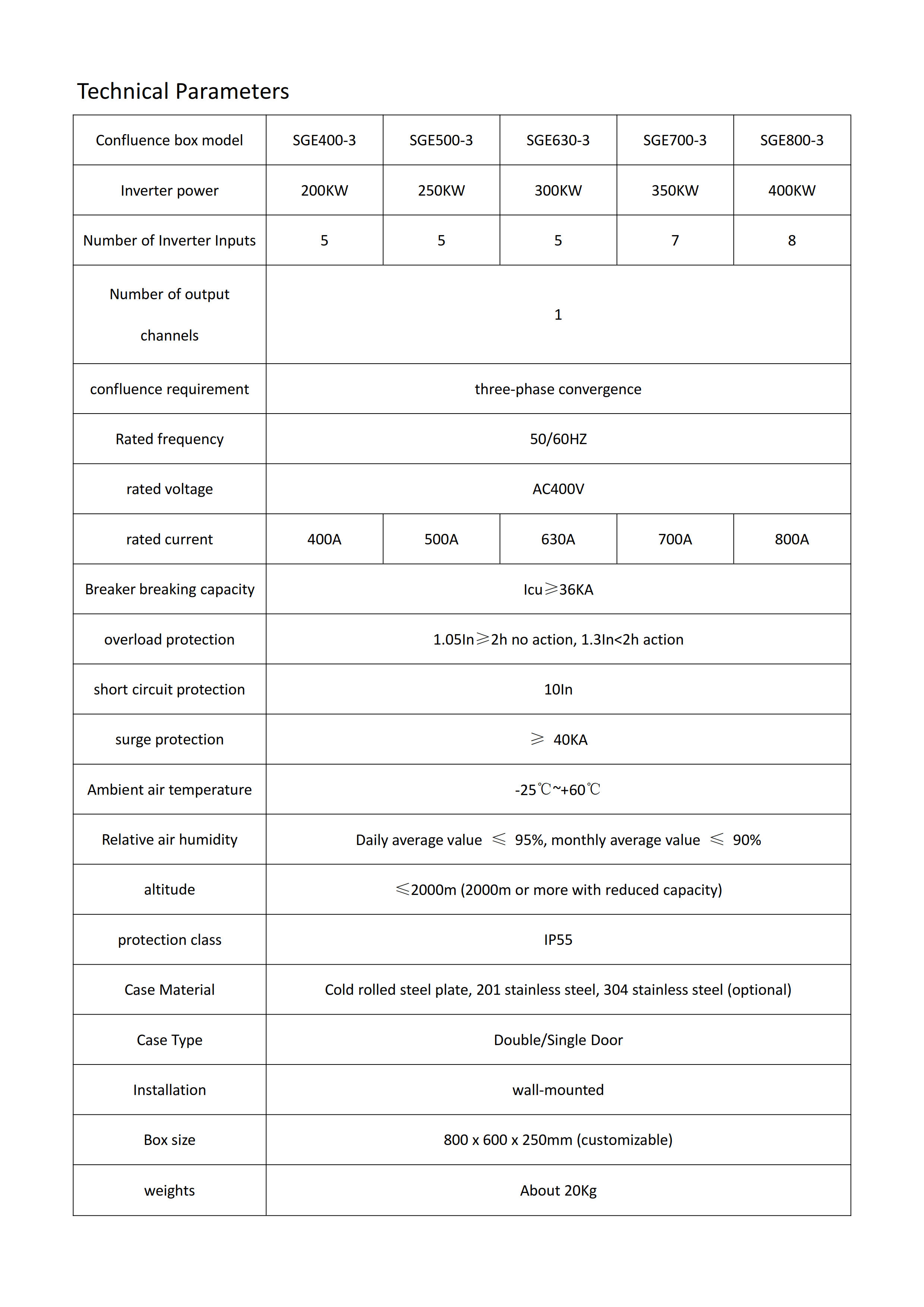

- Technical Parameters

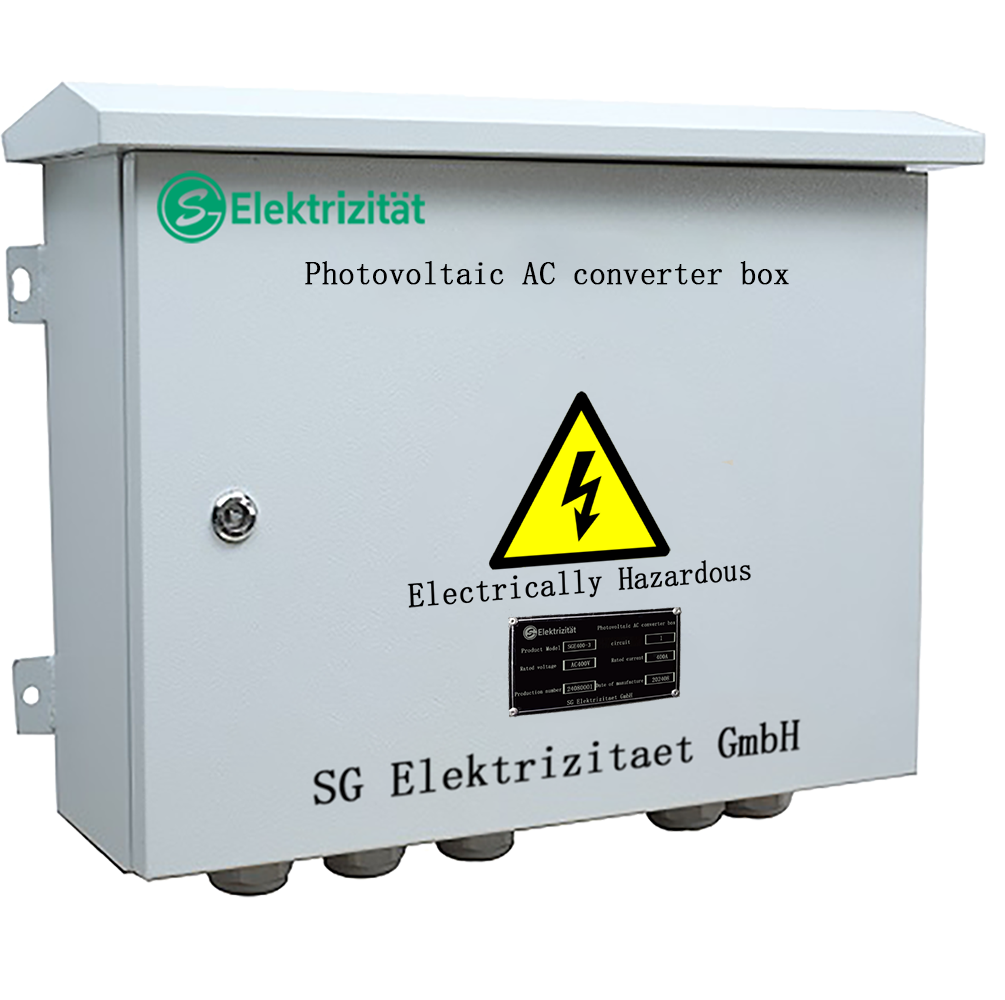

SGE series photovoltaic convergence box (hereinafter referred to as convergence box) is suitable for AC 50/60HZ, rated working voltage up to AC400V, rated working current 800A, applied to centralized photovoltaic grid-connected power generation system in the convergence of string inverters, connected in series between the string-type grid-connected inverters and the grid-connected cabinets, to ensure that the grid-connected inverters and the utility grid of the safety of the coordination, maximum protection of photovoltaic power generation system safe operation. system safe operation.
1. Product integration design concept;
2. Extremely simple to install, operate and maintain;
3. Installation is wall-mounted to meet outdoor conditions;
4. With a variety of protection for users to choose.
1. The altitude of the installation site does not exceed 2000m;
2. Surrounding air temperature: -25℃~+60℃, average value in 24h≤+35℃;
3. Air relative humidity: daily average ≤ 95%, monthly average ≤ 90%;
4. The grid box shall be installed in a place free from explosion hazards, conductive dust, corrosion of metals and damage to insulation;
5. The vertical inclination of the parallel grid box installation shall not exceed 5°;
6. Protection level up to IP55.
